Features of an Induction Billet Heating System

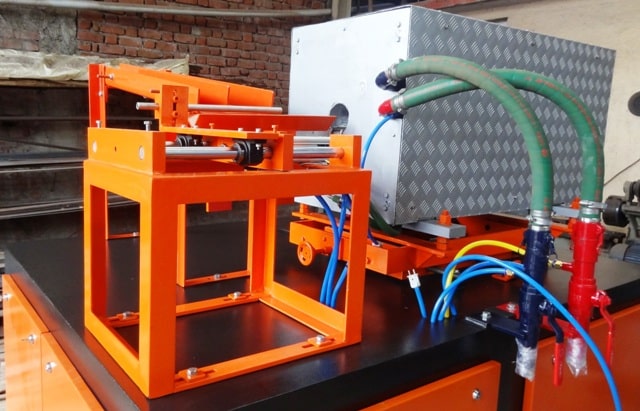

Induction Billet Heater for Forging to Heat Round Bar

The induction billet heating system has revolutionized the metal processing industry by replacing time-consuming and costly traditional heating methods. This efficient heating system has become a game-changer by saving both time and money. The versatility of induction billet heating system makes it a better choice for heating billets of both ferrous and non-ferrous metals. This makes it an essential equipment in modern steel mills and other metal processing industries.

One of the major benefits of the induction billet heating system is its precise and accurate temperature control over a wide range, typically from room temperature to 815 °C (1500 °F). It is generally equipped with automatic temperature controllers that ensures accurate temperature attainment, leading to improved heating results.

Principle of Induction Billet Heating System

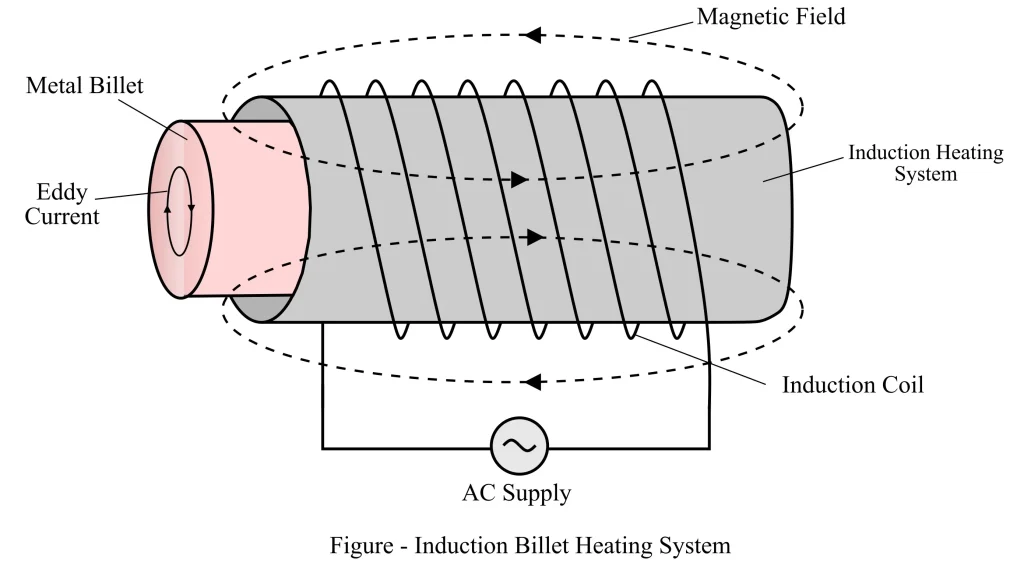

Induction Billet Heating System for Forging
Induction Billet Heating System for Forging

The working of induction billet heating system is based on the principle of electromagnetic induction. According to this principle, an alternating current through a coil can generate a changing magnetic field around the coil, when this changing magnetic field linked to a conducting surface like metal billet, eddy currents are induced in the metal billet. The interaction between the eddy currents and the electrical resistance of the metal billet produces heat within the body of the billet.

The relation between the alternating current and the magnetic field is given by the following equation,

Where, N is the number of turns in the induction coil of the heating system, ϕ is the magnetic flux, and L is the inductance of the electromagnetic system.

The heat produced in the metal billet is as per the Joule’s law of heating, i.e.

Where, W is heat produced measured in joules, ie is the eddy currents induced, R is the resistance of the metal billet, and t is the time.

Now, let’s take explore the key features of an induction billet heating system.

Induction Billet Heating System Features

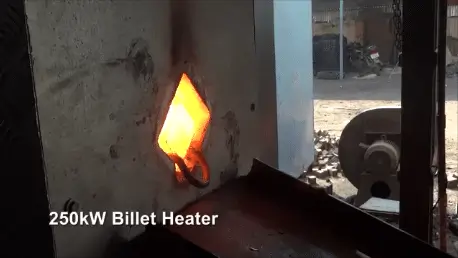

Induction Billet Heating System
Induction Billet Heating System

The following are some of the key features of induction billet heating system:

(1). Optimal System Efficiency:

The ability of the induction billet heating system for direct heat production within the metal billet minimizes the energy loss that results in higher overall efficiency. This not only reduces power consumption but also minimizes the operational costs of the plant.

(2). Uniform and Rapid Heating:

The induction billet heating system rapidly heats the metal billet and ensures uniform heat distribution throughout the body of the billet. This fast and consistent heating process improves the production efficiency and metallurgical properties of the metal billet.

(3). Precise Temperature Control Mechanism:

Induction billet heating system allows operators to have precise control over the heating temperature and hence to achieve the desired temperature accurately. This accurate temperature control ensures consistent and reliable heating of the billets, meeting quality standards consistently.

(4). Contactless Heating:

Induction billet heating systems utilize electromagnetic induction to generate heat. Hence, they heat the billet without any physical contact between the heat source and the billet. This eliminates the risk of surface damage and contamination to the billet, preserving its integrity.

(5). Provide Customizable Heating Profiles:

The induction billet heating system offers flexibility in creating customizable heating profiles. It can accommodate different billet sizes and various alloys that caters to specific heating requirements very easily.

(6). Compact Design:

Due to a compact design, induction heating systems require minimal floor area for their installation. This feature makes them an ideal choice for environments where space is limited which allows for efficient use of available resources.

(7). Enhanced Safety Features:

Induction billet heating systems are equipped with various modern control and protection devices. These mainly include automated power control devices, fault detection sensors, and overheating protection mechanisms. These safety measures ensure a safe working environment for both the equipment and the operators.

In summary, the induction billet heating system is an advanced and revolutionary method for heating metal billets, offering several benefits over traditional heating systems. By utilizing electromagnetic induction heating mechanism, it offers high efficiency, rapid and uniform heating, precise temperature control, and a non-contact heating process. With its compact design and improved safety features, this system is an invaluable asset in the metal processing industry.
