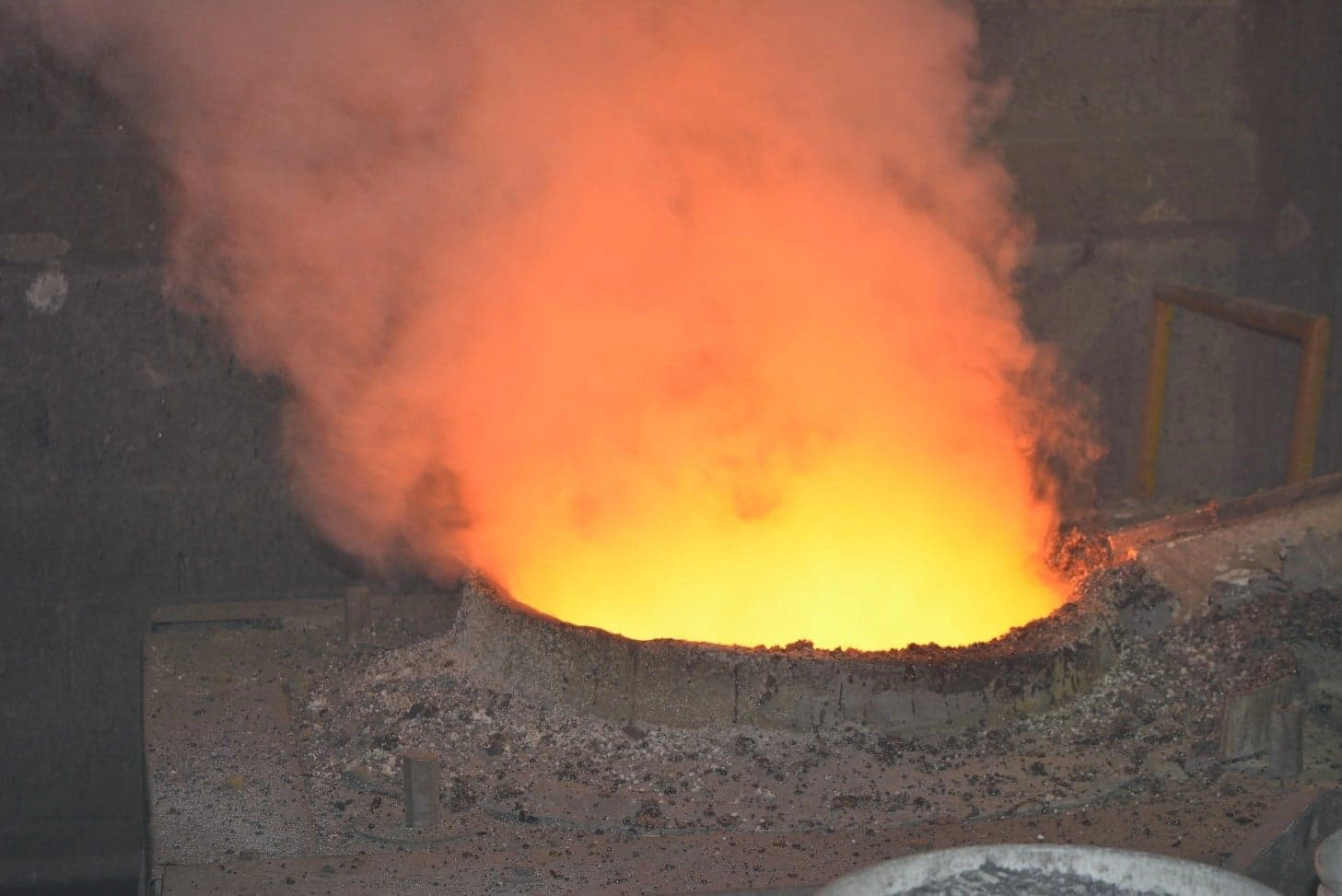

Electric operated Induction Melting Furnace

Metallurgy is a branch of science and engineering that involves the study of metals, their production, properties, process of extraction and purification, etc. More specifically, the study of metallurgical science covers both ferrous and non-ferrous metals along with their alloys.

Metallurgical processes involve theoretical study, lab experiments, practical application of the metals. Overall, metallurgy plays a crucial role in various modern industries, such as manufacturing, mining, construction, automobile, energy, electrical and electronics, etc.

In modern metallurgy, there is a key component at its core namely, electric induction furnace. Basically, the electric induction furnace is one of the most significant technological developments behind the rapid advancement and modernization of metallurgical industries.

Electric induction furnaces provide an efficient, uniform, and environment friendly heating method in metallurgical processes. These kinds of furnaces use the principle of electromagnetic induction to produce heat required to perform various metallurgical operations.

Construction and Working of Electric Induction Furnace

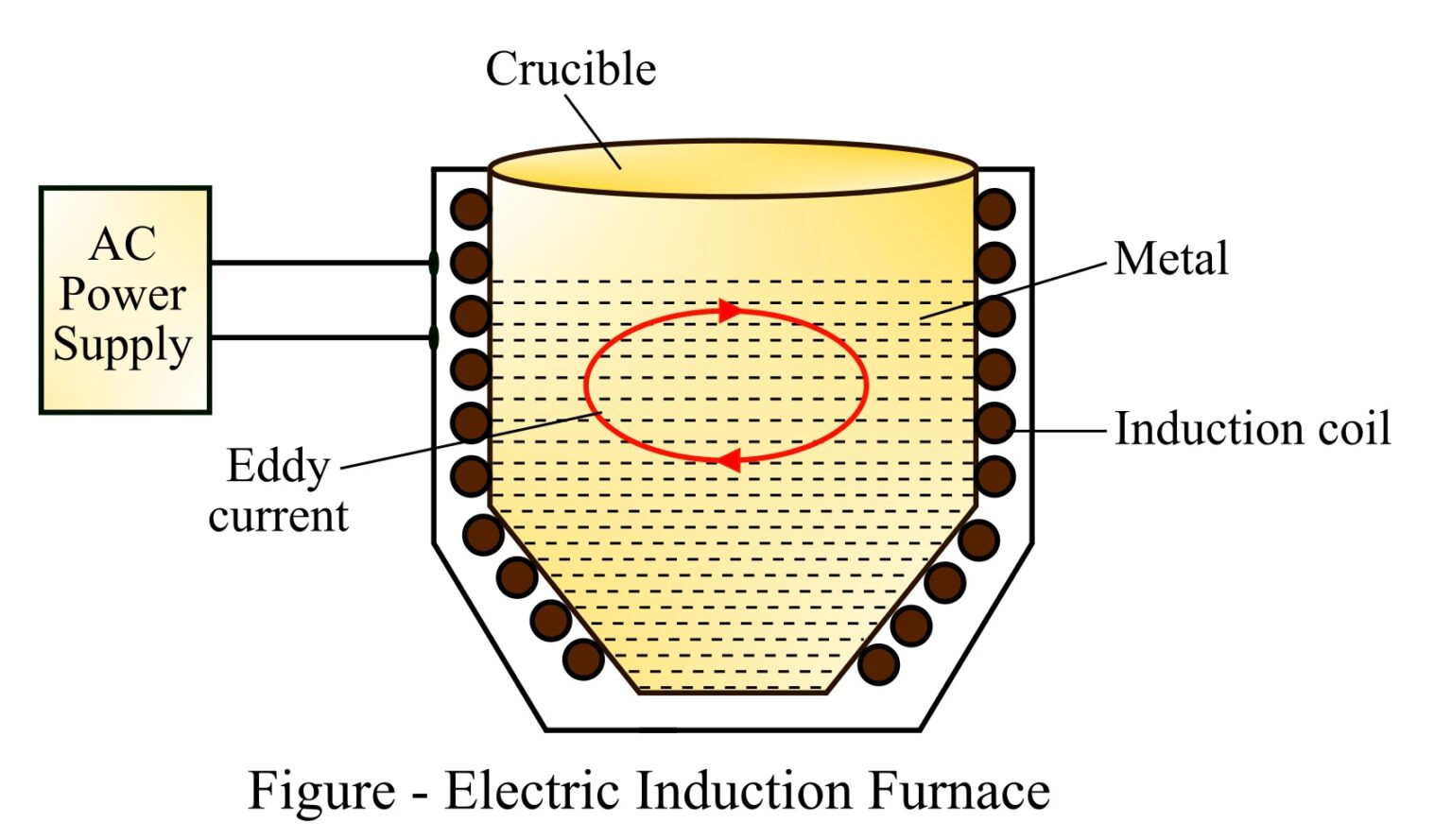

In modern metallurgy, electric induction furnaces are utilized to generate heat for various purposes such as melting, refining, etc. Therefore, it is important for us to understand their basic construction and working, which is explain below. The schematic diagram of electric induction furnace construction is shown in the following figure.

Electric Induction Furnace
Electric Induction Furnace

The major components of an electric induction furnace and their functions are as follows:

  • Induction coil – This is a very crucial component of an electric induction furnace to perform electromagnetic induction. The induction coil is basically a coil of copper wire which is energized from a high-frequency alternating current supply. When alternating current flows through the coil, an oscillating magnetic field is produced that interact with the metal placed in furnace for electromagnetic induction and heating.
  • Crucible – It is a heating chamber made up of a refractory material like ceramic or graphite. The crucible is used to contain the metal workpiece to be heated, melted, or refined. In an electric induction furnace, the crucible is mainly utilized to provide a controlled environment required for successful metallurgical process.
  • Power Supply – A high-frequency alternating current power supply is required to drive the induction furnace. The power supply injects an alternating current into the induction coil to produce magnetic field for electromagnetic induction.

When the changing magnetic field links to the metal workpiece placed in the crucible, inducing eddy current within the metal body. These eddy currents flow against the electrical resistance of the metal and generates heat as per the joule’s law of heating.

The amount of heat generated is given by the following expression,

Where, Ied is the eddy current induced, R is the resistance of the metal, and t is the time.

This heat generated gradually increases the temperature of the metal.

Advantages of Electric Induction Furnaces in Modern Metallurgy

Induction Furnace Explanation
Induction Furnace Explanation

The use of electric induction furnaces in modern metallurgy results in the following benefits:

  • High Energy Efficiency – Electric induction furnaces involves direct heating method, where heat is directly produced within the metal workpiece. This results in minimal energy loss, rapid heating, and hence high energy efficiency. Hence, the use of electric induction furnaces in metallurgical processes reduces the operational cost and environmental impacts.
  • Precise Heating – Electric induction furnaces generate heat through electromagnetic induction, which is a highly controllable process. Therefore, electric induction furnaces provide precise and uniform heating of the metal.
  • Enhanced Metallurgical Properties – Electric induction furnaces provide rapid, uniform, and precise heating and melting throughout the metallurgical process by the use of automatic temperature control. This results in improved metallurgical properties of metal and ensures production of high-quality end products.
  • Clean Operating Environment – Electric induction furnaces utilize electricity to produce heat, instead of fossil fuels. This reduces the emission of harmful gases and pollutants, resulting in a clean and safe operating environment.

Applications of Electric Induction Furnaces in Modern Metallurgy

Electric induction furnaces are widely being used in most metallurgical processes in modern industries. Some key applications of electric induction furnaces in modern metallurgy are listed below:

  • Heat Treatment of Metals – Electric induction furnaces are used in various heat treatment processes like annealing, hardening, tempering, etc. Induction furnaces are mainly used due to their precise temperature control that allows for accurate heat treatment.
  • Steel Production – Electric induction furnaces are used for steel production by melting and refining different types of scrap metals. The ability of rapid and uniform heating enables to produce high-quality steel.
  • Melting of Non-Ferrous Metals – Electric induction furnaces are also used to melt and refine various non-ferrous metals like copper, brass, aluminum, etc. The precise melting process results in the consistent quality and proper alloy compositions.
  • Casting and Foundries – Electric induction furnaces are also employed in casting and foundry applications. They provide rapid and precisely controlled heating, ensuring consistent quality in casting process. This also minimizes defects in the end products.
  • Smelting Ore –Electric induction furnaces provide an energy-efficient and cost-effective way for increasing temperature of metal ores to their melting point during the smelting process.

Overall, electric induction furnaces revolutionize the modern metallurgical industries by providing an energy-efficient, versatile, precise, and environment-friendly heating method.
