Advantages of Using an Induction Furnace in Foundry




induction furnace for casting in foundry

Metal casting is a timeless and essential process that has shaped civilizations and industries for millennia. From ancient artifacts to modern machinery, metal casting plays a pivotal role in manufacturing diverse products across various sectors. In this article, we will explore the numerous advantages of utilizing a metal casting furnace, a crucial tool that revolutionizes the casting process, enabling industries to achieve enhanced efficiency, cost-effectiveness, and sustainability.

Induction Foundry Furnaces for Metal Casting Processes

Before we dive into the specific advantages of using an induction furnace for metal casting in a foundry, let’s first understand the different types of furnaces commonly used in foundries for various metal casting processes. Foundries employ a variety of furnaces, each designed to cater to different casting needs. Some of the most commonly used furnaces in metal casting foundries include:

  1. Cupolas: Cupolas are traditional and widely used furnaces for casting metal in foundries. They operate by burning coke or charcoal to produce heat, which is then used to melt metal in the cupola’s tall, cylindrical structure. Cupolas are suitable for melting iron and steel and are often used in large-scale casting operations.
  2. Direct Fuel-Fired Furnaces: Direct fuel-fired furnaces use natural gas, oil, or propane as a direct heat source for melting metal. They are versatile and can accommodate various types of metals and alloys, making them a popular choice in foundries with diverse casting requirements.
  3. Crucible Furnaces: Crucible furnaces utilize a crucible, typically made of refractory material, to hold and melt the metal. These furnaces for casting metal are commonly used for smaller-scale casting operations and are ideal for melting precious metals and alloys.
  4. Electric-Arc Furnaces: Electric-arc furnaces employ an electric arc to generate heat and melt metal. They are efficient and offer precise temperature control, making them suitable for casting applications that require consistent alloy compositions.

By offering a diverse range of induction foundry furnaces in foundries, the metal casting industry can achieve greater flexibility and efficiency in meeting the specific requirements of various casting projects. These innovative furnaces continue to drive advancements in metal casting technology, enabling industries to produce high-quality castings with improved cost-effectiveness and sustainability.

Furnace Type Heat source Feature
Induction Furnaces Electromagnetic Induction Rapid and efficient metal melting
Cupolas Coke or Charcoal Suitable for melting iron and steel
Direct Fuel-Fired Natural Gas, Oil, or Propane Versatile, accommodating various types
Crucible Furnaces Refractory Crucible Ideal for smaller-scale casting
Electric-Arc Furnaces Electric Arc Efficient with precise temperature control

Comparison of Furnace Types for Metal Casting Processes

With a brief overview of the different types of furnaces commonly used in foundries, let’s now turn our attention to induction furnaces for metal casting.

Understanding Induction Foundry Furnaces for Casting Metal

  A. Definition and Purpose of a Metal Casting Furnace

An induction furnace for casting metal in foundries is a crucial component of the casting process, serving as the crucible where raw materials undergo a transformative process into molten metal. This essential tool harnesses the power of electromagnetic induction to create a seamless casting experience.

  B. Different Types of Induction Furnaces for Casting Metal

Coreless Induction Furnaces:

Coreless induction furnaces are well-known for their rapid and efficient metal melting capabilities. They utilize electromagnetic induction to generate heat directly within the metal, eliminating the need for external heat sources. This results in faster melting rates, reduced energy consumption, and improved temperature control. Coreless induction furnaces are particularly well-suited for casting high-temperature alloys and intricate designs, making them a preferred choice in modern foundries.

Channel Induction Furnaces:

Channel induction furnaces also employ electromagnetic induction to generate heat within the metal. They feature a channel-shaped crucible that allows for precise temperature control and uniform heating of the molten metal. These furnaces are commonly used for various metal casting applications, particularly when consistent temperature distribution is crucial for high-quality castings.

Crucible Induction Furnaces:

Crucible induction furnaces use a crucible as the container for melting the metal. The crucible is made of refractory materials that can withstand high temperatures. These furnaces are versatile and suitable for various types of metals and alloys, making them a popular choice for smaller-scale casting operations and specialized applications.

Vacuum Induction Furnaces:

Vacuum induction furnaces are advanced systems that combine induction heating with a controlled atmosphere or vacuum environment. The absence of air and impurities in the melting chamber ensures high-purity metal castings, making them ideal for critical applications in industries such as aerospace and medicine.

By offering a diverse range of induction foundry furnace types, the metal casting industry can achieve greater flexibility and efficiency in meeting the specific requirements of various casting projects. These innovative furnaces continue to drive advancements in metal casting technology, enabling industries to produce high-quality castings with improved cost-effectiveness and sustainability.

How Induction Furnace for Metal Casting Work

Induction furnaces for metal casting operate by utilizing the principles of electromagnetic induction to generate and maintain high temperatures necessary for melting solid metal and transforming it into a molten state. The process involves several steps, each crucial in ensuring a seamless and efficient casting experience. Let’s delve into the working mechanism of these induction furnaces and the steps involved in the metal casting process.

  1. Electromagnetic Induction:

The fundamental principle behind induction furnaces is electromagnetic induction. When an alternating electric current flows through a coil or inductor, it generates a rapidly changing magnetic field around it. When a metal object, such as the raw materials for casting, is placed within this magnetic field, the changing magnetic field induces electric currents, known as eddy currents, within the metal

Electromagnetic Induction
Electromagnetic Induction
Sectional View of Induction Furnace
Sectional View of Induction Furnace



















  2. Melting the Metal:

As the eddy currents circulate through the metal, they encounter resistance, leading to the generation of heat. This process causes the solid metal to rapidly heat up and reach its melting point, resulting in the transformation of the solid material into a molten state. The speed and efficiency of this heating process are one of the notable advantages of using induction furnaces for metal casting.

  3. Temperature Control:

Induction furnaces offer precise temperature control during the melting process. The power supply to the induction coil can be adjusted to regulate the heating rate and maintain the desired temperature for the specific metal or alloy being cast. This level of temperature control is essential for achieving consistent and high-quality castings with the desired mechanical properties.

  4. Loading and Pouring:

The metal casting process begins with loading the raw materials, typically in the form of solid metal pieces or scrap, into the induction furnace’s crucible. Once the metal is fully melted and reaches the desired temperature, the furnace is tilted, allowing the molten metal to be poured into molds. These molds are carefully designed to create the desired shapes and structures of the final castings.

  5. Casting Solidification:

After the molten metal is poured into the molds, it undergoes solidification as it cools down. This is a critical phase where the metal takes the form of the mold, solidifying into the desired shape. Proper cooling and solidification are essential to ensure that the castings retain their integrity and mechanical properties.

  6. Casting Removal and Finishing:

Once the castings have solidified and cooled sufficiently, they are removed from the molds. Depending on the specific application and industry requirements, the castings may undergo additional finishing processes such as trimming, cleaning, machining, and surface treatment to achieve the desired final product.

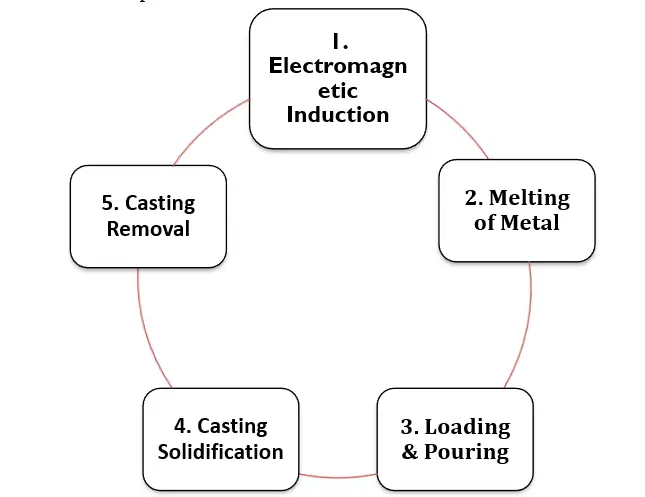

Summary of Working Process of Induction Furnace for Metal Casting
Summary of Working Process of Induction Furnace for Metal Casting

Advantages of Using an Induction Furnace for Metal Casting

Metal casting furnaces revolutionize the casting process, unlocking a multitude of advantages that elevate metalworking to new heights. From enhanced efficiency to sustainable practices, the benefits of utilizing induction casting furnaces extend across various aspects of industrial operations.

  A. Improved Efficiency and Productivity:

  1. Faster Melting and Casting Processes: Metal casting furnaces, especially induction furnaces for casting, boast rapid melting rates compared to traditional methods. The precise temperature control ensures swift heating, reducing the time required to reach the optimal casting temperature. As a result, industries can achieve higher production output, meeting market demands more efficiently.
  2. Enhanced Control Over Temperature and Alloy Composition: Metal casting furnaces provide precise temperature regulation, critical for maintaining the desired alloy composition. This control ensures consistent mechanical properties and material characteristics, leading to high-quality castings that meet stringent industry standards.

  B. Cost-effectiveness and Energy Efficiency:

  1. Optimal Use of Fuel or Electricity: Metal casting furnaces, particularly induction furnaces for casting, minimize energy wastage through direct electromagnetic induction. Compared to conventional furnaces, they consume less electricity or fuel, translating into cost savings for manufacturers.
  2. Reduced Material Waste and Scrap: The accurate temperature control and fluidity of molten metal enable efficient mold filling, minimizing material waste and reducing the need for costly rework. The result is improved yield and cost-effectiveness in the casting process.

  C. Versatility and Flexibility:

  1. Ability to Cast a Wide Range of Metals and Alloys: A furnace for casting metals can accommodate various types of metals and alloys, from aluminum and copper to steel and high-temperature alloys. This versatility allows industries to cater to diverse market demands and explore new product possibilities.
  2. Accommodation of Various Casting Techniques and Molds: Whether it’s sand casting, investment casting, or die casting, metal casting furnaces seamlessly adapt to different casting techniques. Moreover, they support the use of intricate molds, enabling the production of complex shapes and designs.

  D. Quality and Consistency of Castings:

  1. Reduced Porosity and Defects: Precise temperature control and uniform heating minimize the risk of porosity and other defects in castings. This results in higher-quality end products with improved mechanical properties and structural integrity.
  2. Enhanced Dimensional Accuracy and Surface Finish: Metal casting furnaces enable precise casting with minimal dimensional variations. The smooth and consistent surface finish reduces the need for additional finishing processes, saving time and resources.
Advantages Description
Improved Efficiency and Productivity – Faster Melting and Casting Processes

– Enhanced Control Over Temperature and Alloy Composition

Cost-effectiveness and Energy Efficiency – Optimal Use of Fuel or Electricity

– Reduced Material Waste and Scrap

Versatility and Flexibility – Ability to Cast a Wide Range of Metals and Alloys

– Accommodation of Various Casting Techniques and Molds

Quality and Consistency of Castings – Reduced Porosity and Defects

– Enhanced Dimensional Accuracy and Surface Finish

Summary of Advantages of Using an Induction Furnace for Metal Casting

Conclusion

In conclusion, the advantages of using a metal casting furnace are multifaceted and significant in various manufacturing and artistic applications. These furnaces provide a reliable and efficient means of transforming solid metals into molten form, enabling the creation of intricate and complex shapes through the casting process. With precise temperature control and a range of heating mechanisms, metal casting furnaces can accommodate various types of metals and alloys, making them versatile tools in diverse industries. Additionally, their ability to handle large-scale operations or smaller, more delicate creations caters to a wide spectrum of production needs. The use of induction casting furnaces facilitates cost-effective mass production while also offering opportunities for customization and individual artistry. Moreover, by ensuring the proper casting of intricate parts with consistent quality, these furnaces play a crucial role in advancing industrial progress and fostering creativity in the realm of metalworking and design.
