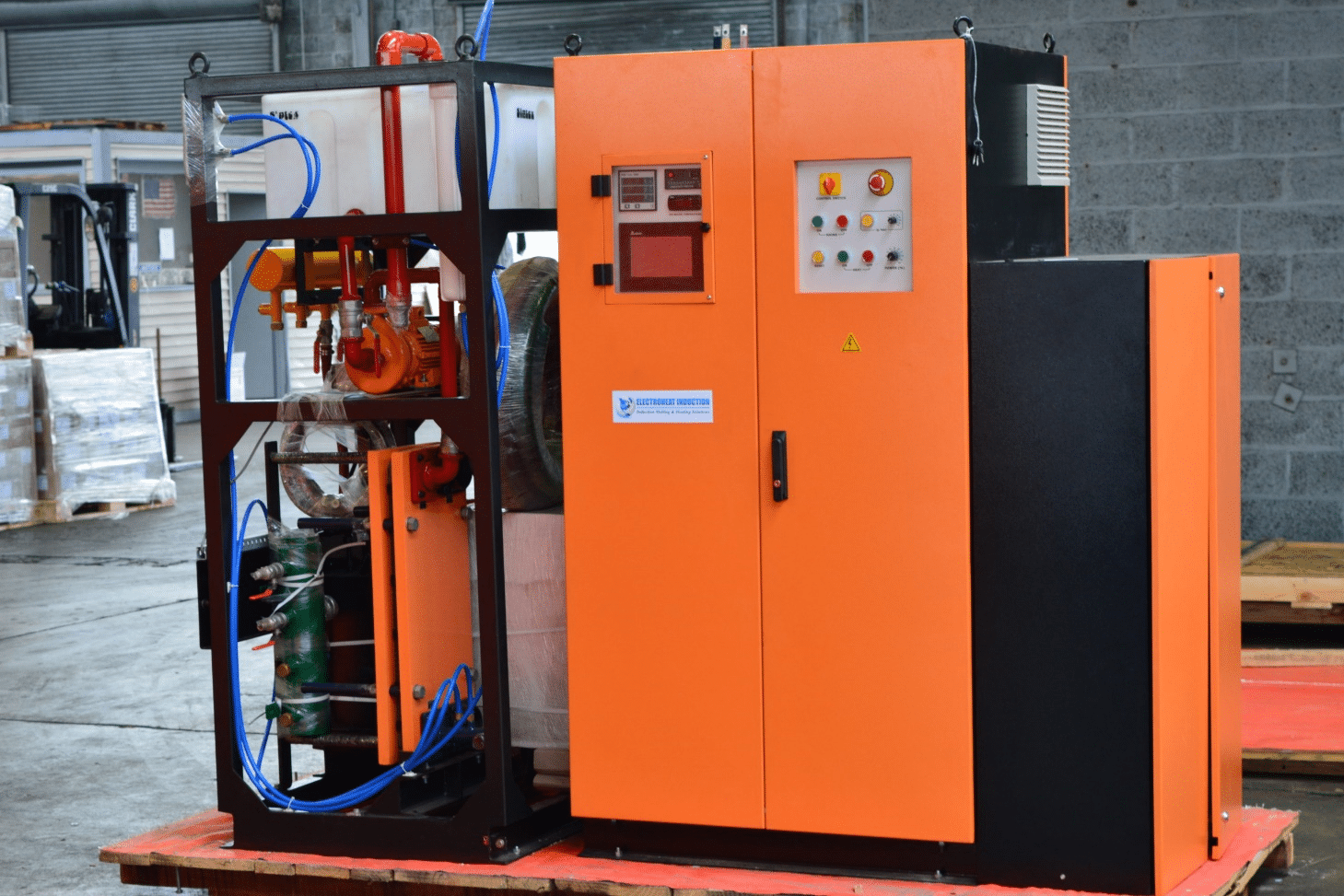

Induction Power Supply Units for Industrial Heating and Melting

Induction power supply units convert electrical input into controlled high-frequency energy for industrial heating and melting. Designed for stable output, high efficiency, and precise control, these systems deliver consistent thermal performance in foundries, forging plants, and advanced manufacturing.

Product Snapshot: Induction Power Supply Units (Quick Qualification Guide)

Parameter	Typical Range / Capability
Power Output	50 kW to 10,000 kW, depending on application, furnace size, heating duty, and project configuration
Operating Frequency	Project-specific medium- or high-frequency output, selected according to material, heating depth, coil design, and process duty
Electrical Efficiency	High-efficiency solid-state conversion; exact efficiency depends on configuration and operating conditions
Power Factor	0.94–0.98 (load dependent)
Energy Consumption	Varies by application, material, furnace configuration, and operating conditions. Electroheat confirms expected energy performance during project-specific sizing.
Technology	Insulated Gate Bipolar Transistor (IGBT)-based solid-state power supply
Control System	Digital Signal Processing (DSP) + Programmable Logic Controller (PLC) with Human-Machine Interface (HMI)
Cooling	Closed-loop demineralized (DM) water system with a cooling tower
Monitoring	Real-time electrical, thermal, and cooling diagnostics
Protection	Overcurrent, overvoltage, earth leakage, and thermal interlocks
Integration	Supervisory Control and Data Acquisition (SCADA)-ready systems

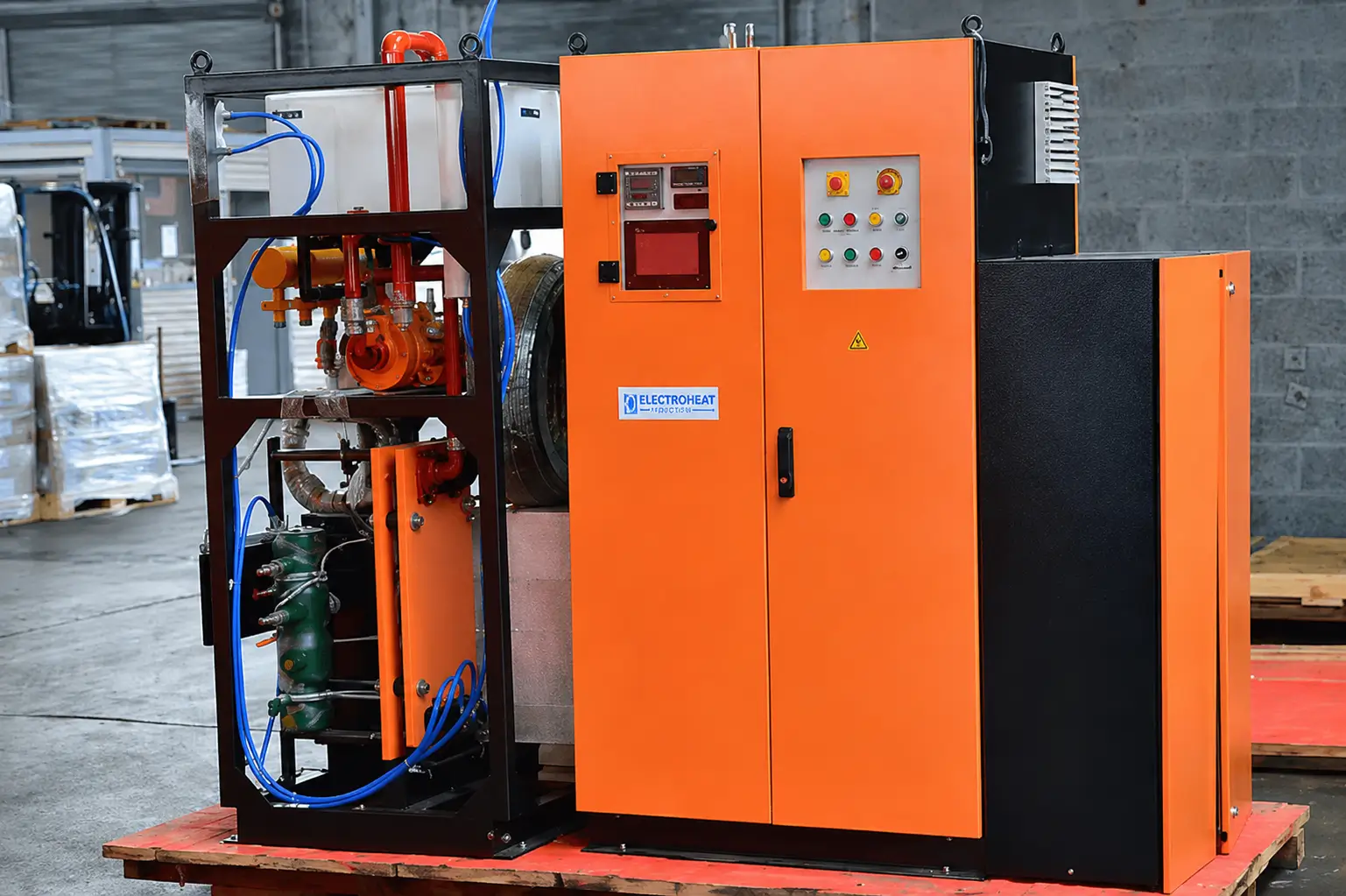

Why Choose Electroheat Induction Power Supply Systems

Electroheat induction power supply units address key challenges in foundries and industrial heating plants, including high energy costs, unstable melt cycles, downtime, limited process visibility, and inconsistent heating.

Lower energy cost per ton

High-efficiency IGBT-based power conversion reduces electrical losses during heating and melting. With 95–97% efficiency and a power factor of 0.94–0.98, the system lowers energy consumption and improves plant power utilization.

More consistent melting and heating performance

Dynamic load matching allows the power supply to adapt as the charge transitions from solid to molten. This maintains stable coupling between the induction coil and load, reducing melt variation and improving repeatability.

Reduced downtime and equipment risk

Integrated protection systems, including overcurrent, overvoltage, earth leakage, cooling interlocks, and thermal monitoring, safeguard key components such as the inverter, capacitor bank, coil circuit, and cooling system.

Better operator visibility and process control

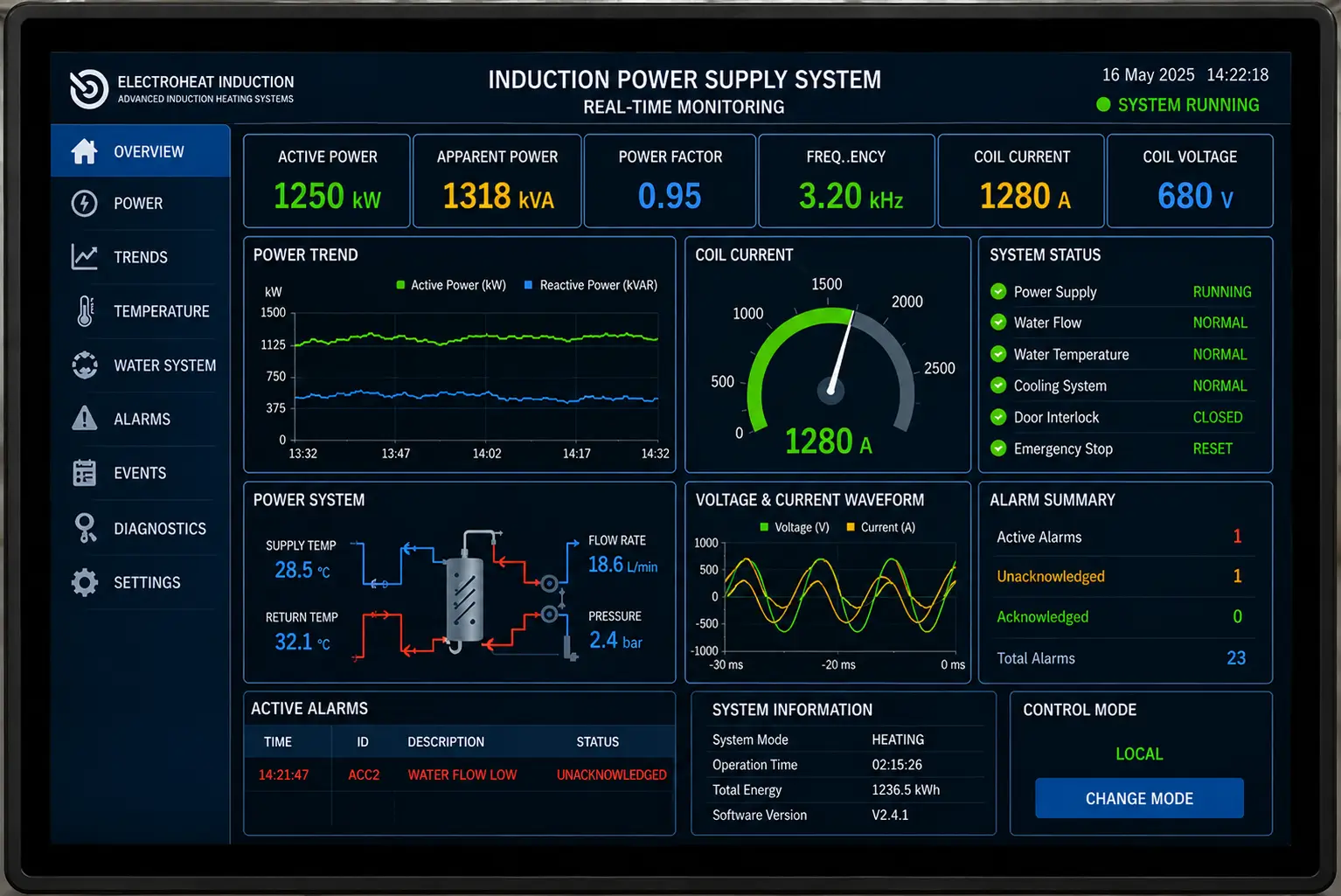

Real-time monitoring of kW, kVA, power factor, coil current, cooling temperature, and alarms provides operators with actionable data for troubleshooting, maintenance, and melt-cycle optimization.

Improved return on investment

For high-use foundry and industrial heating operations, improved energy efficiency, shorter melt cycles, reduced maintenance, and greater consistency offer greater lifecycle value than focusing solely on the initial purchase cost.

Types of Induction Furnace Power Supply Units

Induction power supplies are classified by operating frequency and switching technology, which determine heating depth, efficiency, and suitability for specific industrial processes.

Medium-Frequency Induction Power Supplies

Medium-frequency induction power supplies typically operate between 500 hertz (Hz) and 10 kilohertz (kHz). These systems are widely used in metal-melting applications due to their ability to provide deeper electromagnetic penetration into the charge material.

In practical foundry operations, this allows efficient heating of dense scrap and bulk metal loads. For example, a 3-ton induction furnace operating at approximately 800–1200 kW can complete melt cycles in 60–90 minutes, depending on the charge composition and preparation [2].

Stability in medium-frequency systems during the transition from solid to molten metal is essential. Poor control during this phase can lead to energy losses, incomplete melting, and longer cycle times.

High-Frequency Induction Systems

High-frequency induction systems typically operate above 10 kHz and can reach up to 200 kHz. At these frequencies, the skin effect becomes dominant, meaning that the induced current and, therefore, the heat are concentrated near the surface of the material.

For example:

• At approximately 1 kHz, heat penetration in steel can reach 10–20 millimeters.
• At approximately 100 kHz, penetration reduces to about 1–2 millimeters [3].

High-frequency induction systems are ideal for surface hardening, brazing, and precision heating applications that require localized thermal control.

Solid State IGBT Power Supplies

Modern induction heating systems use IGBT-based solid-state power supplies. The IGBT combines the efficiency of bipolar transistors with the fast switching of metal-oxide-semiconductor field-effect transistors (MOSFETs).

Compared to older Silicon Controlled Rectifier (SCR)-based systems, IGBT-based systems offer:

• Faster switching frequencies
• Lower conduction and switching losses
• Improved dynamic load response

These advantages result in higher energy efficiency, smoother power delivery, and greater reliability under fluctuating load conditions [4].

Industrial Applications of Induction Power Supply Units

Induction heating power supplies are used in a wide range of industrial applications requiring controlled, efficient heat generation.

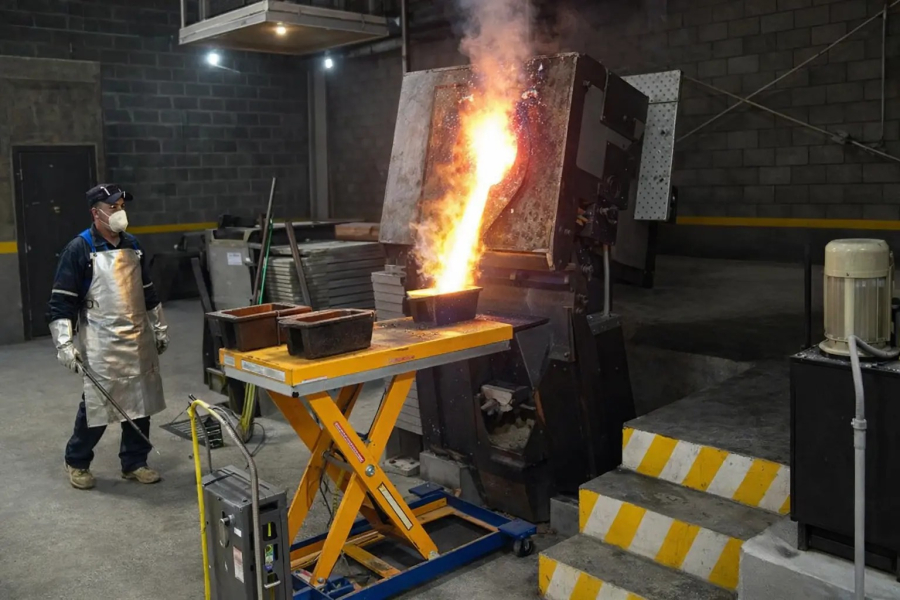

In metal melting, induction systems deliver direct energy to the charge, minimizing heat losses common in combustion furnaces. This improves metal yield, reduces oxidation, and enhances alloy control.

For forging and billet heating, induction heaters quickly raise steel billets to forging temperatures (typically 1100°C to 1250°C) within minutes. This rapid heating minimizes scale and improves material properties.

In specialized applications such as induction-curing and crystal-growth systems, high-frequency induction delivers stable thermal environments essential for advanced material processing and semiconductor manufacturing.

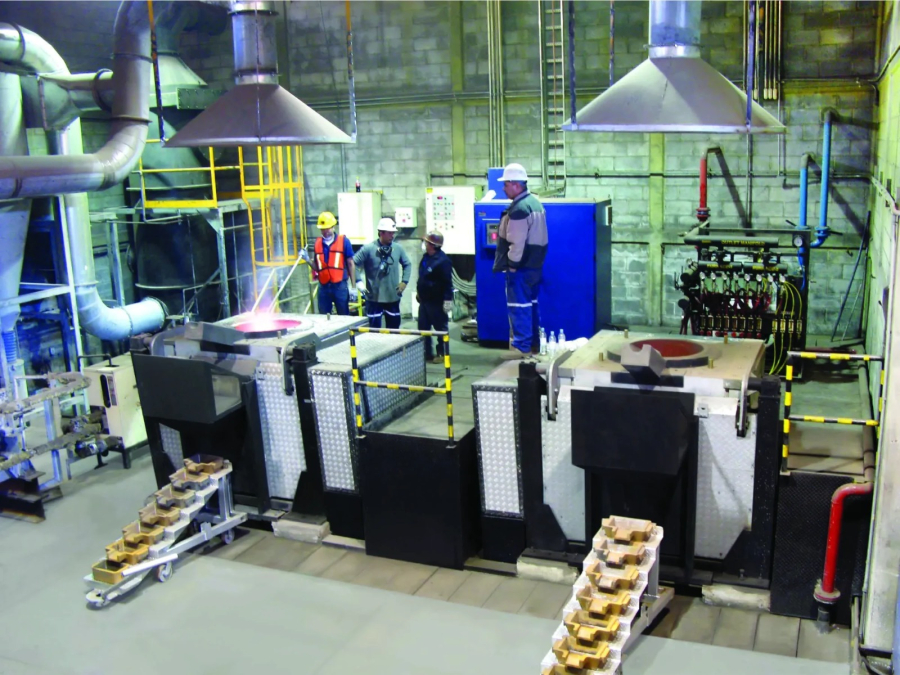

Field Application Note

In foundry operations, consistent results depend on treating the power supply, coil, capacitor bank, cooling system, and charge practice as a single system. Even efficient power supplies can underperform if scrap is poorly prepared, cooling is unstable, or molten metal is held too long. Electroheat systems prioritize stable power delivery, monitoring, interlocks, and data visibility throughout the process.

Key Features of Industrial Induction Power Supplies

High Energy Efficiency and Power Factor

Modern induction-heating power supplies achieve over 95% electrical efficiency. With power factor values near unity (0.95–0.98), these systems significantly reduce reactive power demand and improve overall efficiency.

Dynamic Load Matching

During melting, the load’s electrical characteristics change as the material transitions from solid to liquid. Advanced controls automatically adjust frequency and power to maintain optimal coupling between the coil and charge.

Dynamic load matching minimizes energy losses and maintains consistent heating performance.

Process Monitoring and Data Visibility

Modern systems provide continuous monitoring of:

• Active power (kW) and apparent power (kVA)
• Power factor
• Coil current and voltage
• Cooling water temperature and flow rate

This data helps operators identify inefficiencies, optimize melt cycles, and improve operational consistency.

System Protection and Reliability

Industrial induction systems are equipped with multiple layers of protection, including:

• Overcurrent protection
• Thermal overload protection
• Cooling system interlocks
• Earth leakage detection

These features ensure safe operation and reduce the risk of equipment damage in demanding industrial environments.

Compliance and Safety Considerations

Industrial induction power supply units must be selected and installed with attention to electrical safety, cooling, grounding, interlock, and operating requirements. Standards such as IEC 60519-1 provide general safety requirements, while IEC 60519-3 covers induction and conduction heating and melting installations [6].

In practice, the system should include rated electrical protection, safe enclosure design, cooling-flow monitoring, earth leakage detection, emergency shutdown, and clear operator interfaces. For heat treatment, process qualification and control should follow recognized guidance, such as ASTM A1100 for induction heat-treating process control [7].

How an Induction Power Supply Works

An induction power supply operates through a multi-stage electrical conversion process.

Three-phase alternating current from the plant supply is first converted to direct current by a controlled rectifier. An LC filter then smooths the DC output and reduces electrical ripple before the power reaches the IGBT H-bridge inverter. The inverter converts the filtered DC into controlled medium- or high-frequency AC, selected for the heating or melting application.

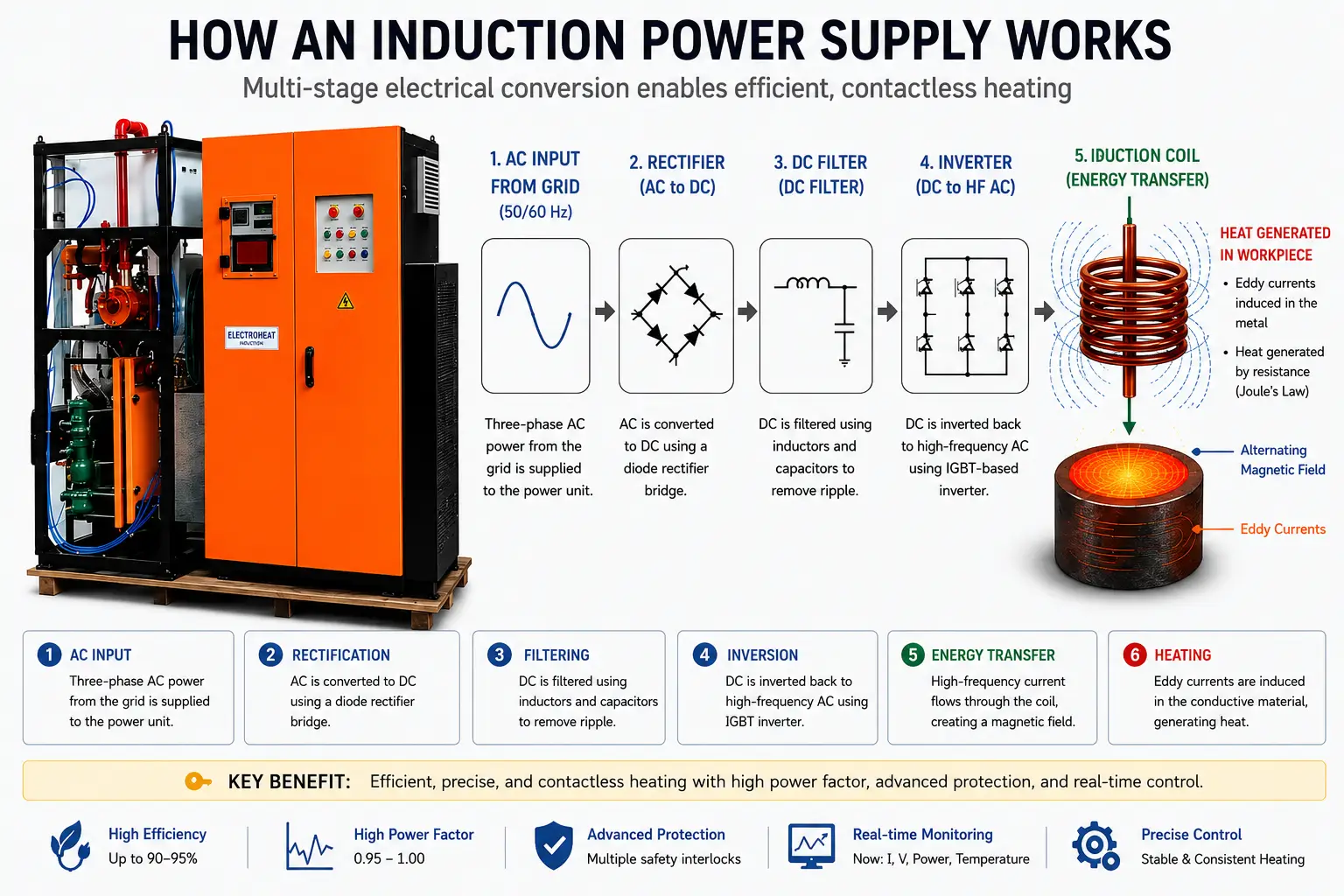

The simplified circuit in Figure 4 illustrates how these components work together before power reaches the furnace coil.

After inversion, the high-frequency current flows through the current-limiting reactor and into the resonant tank circuit formed by the capacitor bank and the furnace coil. The reactor limits sudden current surges, while the capacitor and coil are electrically matched to enable efficient resonant power transfer.

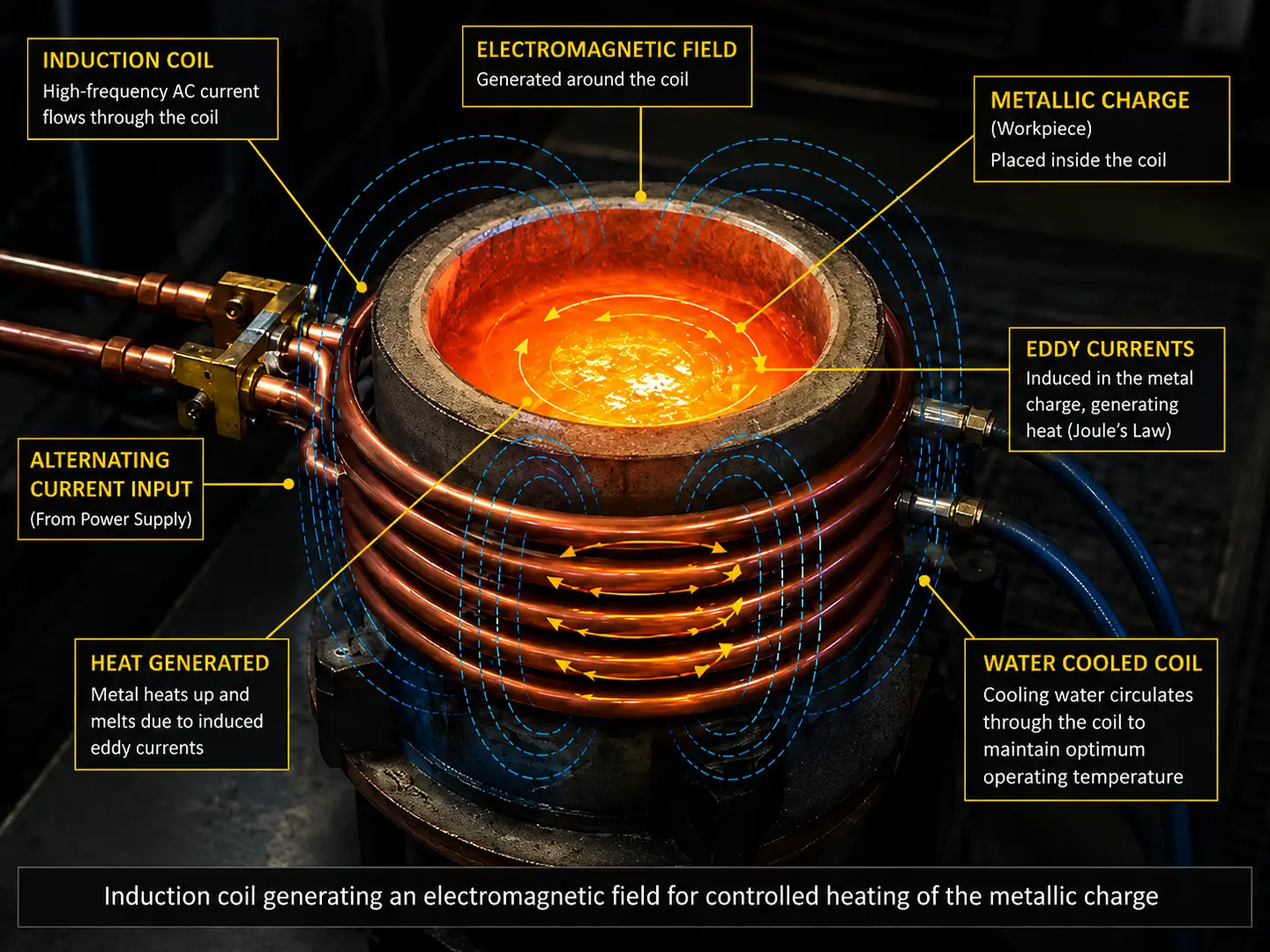

The alternating current flowing through the furnace coil produces a rapidly changing magnetic field. When an electrically conductive material is placed within this field, induced eddy currents generate heat directly within the material. This enables controlled, contactless heating or melting with precise regulation of power, frequency, and heating rate.

Figure 5 presents the complete process from incoming electrical power through conversion, energy transfer, and heat generation within the metallic charge.

Custom and Engineered Power Supply Solutions

Industrial processes often require customized induction heating solutions tailored to specific operational needs.

These may include:

• Multi-output systems for simultaneous furnace operation
• Frequency tuning for specialized alloys
• Integration with automated production lines
• Load balancing across multiple power supply units

Custom engineering ensures optimal performance while addressing the specific constraints of each application.

Request a Quote for Induction Power Supply Systems

Selecting the right induction power supply is critical to operational efficiency and long-term costs.

To help Electroheat recommend the right configuration, please include the following details in your inquiry:

• Material to be heated or melted
• Required batch size or throughput
• Available input voltage and plant power limits
• Desired melt time or heating cycle
• Cooling-water availability
• Automation, data logging, or remote monitoring requirements
• Existing furnace or production-line constraints

Expert Review

Meet Charlie Parsana, Our Induction Power Supply Technical Reviewer

Chief Engineer, Electroheat Induction

Charlie Parsana is Chief Engineer at Electroheat Induction, with 22 years of experience in induction furnace systems, power electronics, industrial heating, and melting applications. His technical work includes IGBT-based power supply configuration, inverter performance, DSP/PLC control, load matching, resonant tank circuits, capacitor bank coordination, cooling protection, interlock systems, HMI monitoring, commissioning support, and troubleshooting for industrial heating and melting operations.
For induction power supply units, his review focuses on practical engineering requirements such as output power, operating frequency, load behavior, coil compatibility, cooling-water readiness, electrical protection, process stability, operator visibility, and long-term serviceability.

“In an induction system, the power supply is not just an electrical cabinet. It controls how efficiently and reliably energy is delivered to the coil, the load, and the process. Correctly matching power, frequency, cooling, and protection is essential for stable industrial heating and melting.” — Charlie Parsana, Chief Engineer, Electroheat Induction

Review note:
This page has been prepared for technical review to support accuracy and practical relevance in induction power supply selection, IGBT-based power delivery, frequency control, load matching, cooling protection, electrical interlocks, operator monitoring, and Electroheat induction heating and melting system capabilities.
