In the world of industrial metal processing, high-capacity and efficiency-driven equipment is vital. Among the key innovations redefining melting operations is the steel frame induction furnace, a robust and scalable solution built to meet the growing demands of large-scale applications.

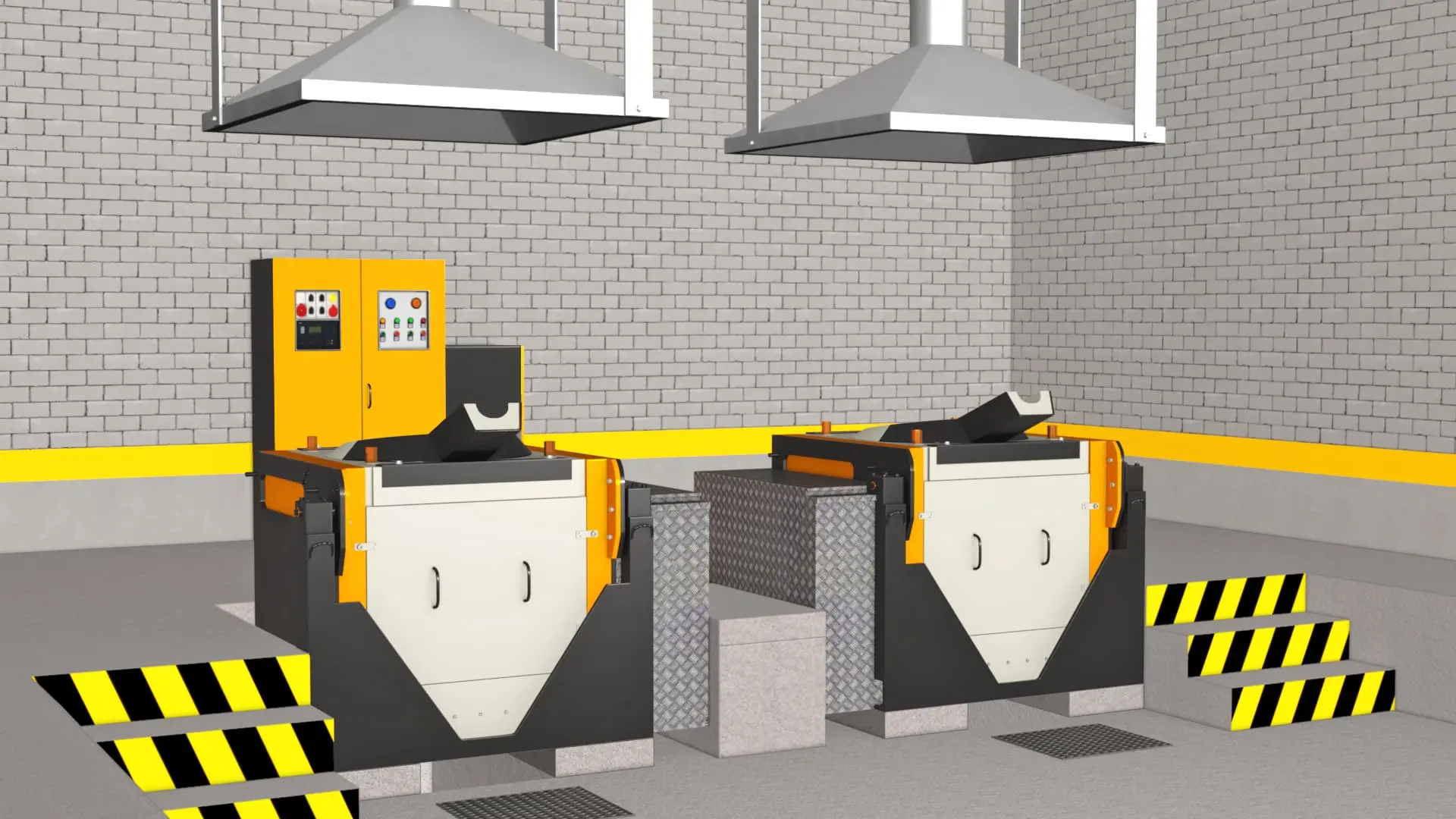

A steel frame induction furnace is a heavy-duty melting system designed with a strong structural steel framework to support larger crucible sizes and heavier loads. Unlike lightweight aluminum frame models, these furnaces are engineered for high-volume metal melting, often used in steel plants, foundries, and metal recycling facilities. In some applications, especially where alloy variation and capacity flexibility are key, a steel frame melting furnace is preferred due to its adaptability and robust thermal handling.
These furnaces utilize electromagnetic induction to melt metals, especially steel and high-density alloys with minimal energy waste, providing faster heating and higher productivity.

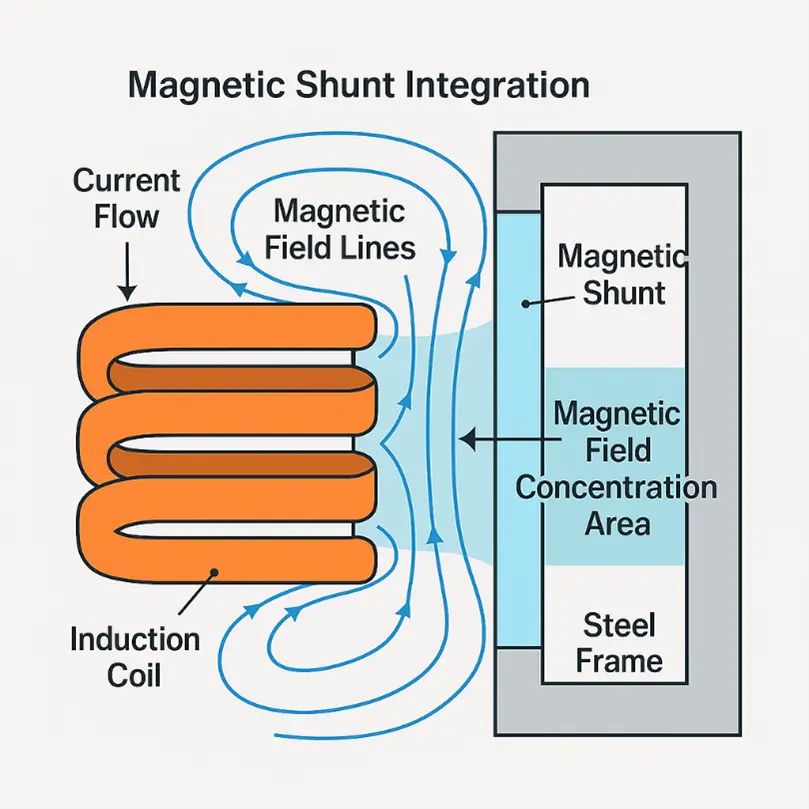

Magnetic Shunts: Enhancing Efficiency in Magnetic Shunted Furnaces
In advanced steel frame induction furnace systems, also known as magnetic shunted furnaces, magnetic shunts are used to direct and concentrate the magnetic field around the induction coil. These laminated soft magnetic components serve to:
By minimizing eddy current losses in surrounding structural parts, magnetic shunts significantly boost thermal performance and reduce operating costs. This makes magnetic shunted furnaces a preferred choice for energy-efficient, large-scale steel melting operations.
The working principle mirrors that of all induction furnaces—alternating current flows through a coil, producing a magnetic field that induces eddy currents within the metal charge, generating heat. However, the distinguishing feature here is the rugged steel frame, which provides:

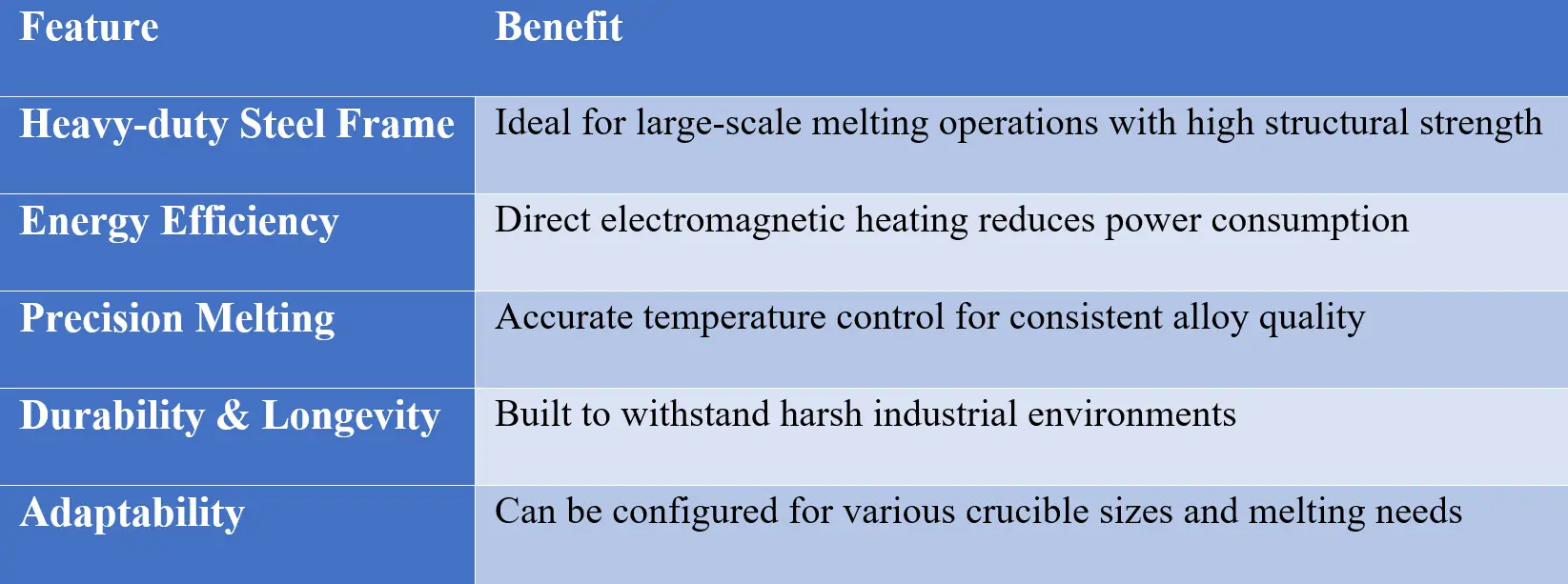

Feature | Benefit |
Heavy-duty Steel Frame | Ideal for large-scale melting operations with high structural strength |
Energy Efficiency | Direct electromagnetic heating reduces power consumption |
Precision Melting | Accurate temperature control for consistent alloy quality |
Durability & Longevity | Built to withstand harsh industrial environments |
Adaptability | Can be configured for various crucible sizes and melting needs |
The steel frame induction furnace for steel plant and industrial use cases is favored across various sectors:
When evaluating or specifying a steel frame induction furnace, the following criteria are essential:

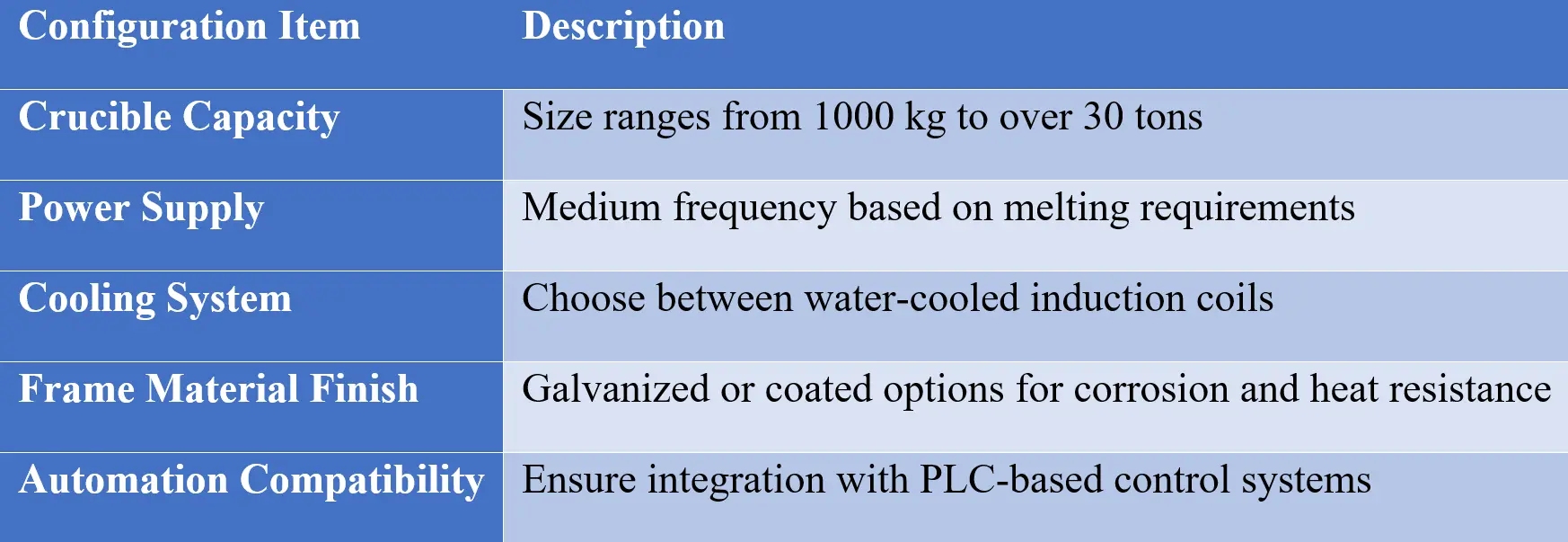

Configuration Item | Description |
Crucible Capacity | Size ranges from 1000 kg to over 30 tons |
Power Supply | Medium frequency based on melting requirements |
Cooling System | Choose between water-cooled induction coils |
Frame Material Finish | Galvanized or coated options for corrosion and heat resistance |
Automation Compatibility | Ensure integration with PLC-based control systems |

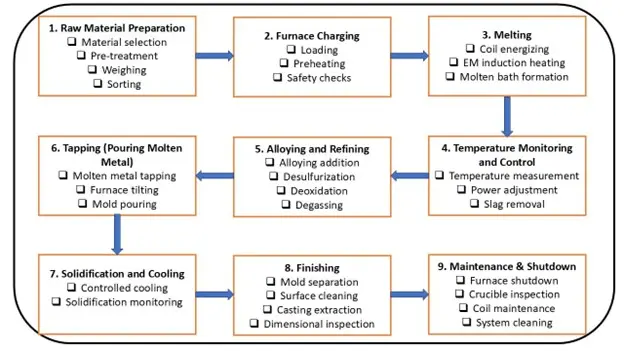

While design considerations shape the system’s form, operational workflow determines its efficiency in practice:
A trusted steel frame furnace manufacturer can tailor designs for heavy industry. Their benefits include:
Moreover, their compatibility with smart control systems enables real-time monitoring, predictive maintenance, and remote diagnostics, aligning with Industry demands.
A steel frame induction furnace is more than just a melting device—it’s a critical asset for any facility engaged in high-volume or high-temperature metal production. From steel plants to industrial recyclers, the steel frame induction melting furnace brings unmatched strength, efficiency, and control to large-scale operations.
For teams looking to balance strength with modularity, a steel frame melting furnace can serve as an excellent alternative or complement to the induction-driven models. Whether you’re upgrading your current system or setting up a new plant, partnering with a trusted steel frame furnace manufacturer ensures you get a solution tailored for durability, scalability, and productivity.
